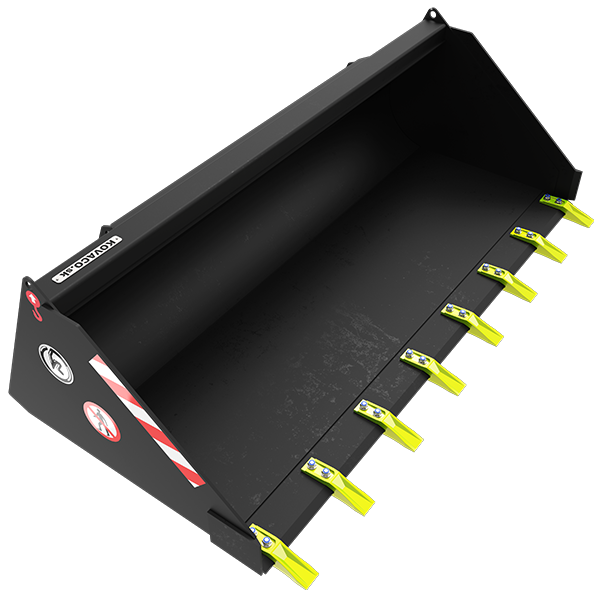

The Basic Bucket is used for levelling the ground, scooping, transferring and dumping various material. It is made of materials that guarantee a long lifespan, reliability in every working mode, and a maximum utilisation of the loader power.
The Basic Bucket is used for levelling the ground, scooping, transferring and dumping various material. It is made of materials that guarantee a long lifespan, reliability in every working mode, and a maximum utilisation of the loader power.
| Type | 85 152 | 85 168 | 85 173 | 85 178 | 85 183 | 85 188 | 85 200 | 85 210 |
|---|---|---|---|---|---|---|---|---|
| Base Machine | ||||||||
| Volume (m 3 ) | 0.27 | 0.34 | 0.41 | 0.42 | 0.44 | 0.46 | 0.48 | 0.50 |
| Width (mm) | 1,520 | 1,680 | 1,730 | 1,780 | 1,830 | 1,880 | 2,000 | 2,100 |
| Weight without/with Teeth (kg) | 175 / 191 | 204 / 222 | 216 / 234 | 220 / 239 | 228 / 246 | 235 / 252 | 242 / 260 | 266 / 290 |
| Weight of Base Machine (t) | 1.6 - 6 |
| Type | 85 152 | 85 168 | 85 173 | 85 178 | 85 183 | 85 188 | 85 200 | 85 210 |
|---|---|---|---|---|---|---|---|---|
| Base Machine | ||||||||
| Volume (ft 3 ) | 9.53 | 12.01 | 14.48 | 14.83 | 15.54 | 16.24 | 16.95 | 17.66 |
| Width (in) | 59.8 | 66.1 | 68.1 | 70.1 | 72.0 | 74.0 | 78.7 | 82.7 |
| Weight without/with Teeth (lb) | 386 / 421 | 450 / 489 | 476 / 516 | 485 / 527 | 503 / 542 | 518 / 556 | 534 / 573 | 586 / 639 |
| Weight of Base Machine (lb) | 3,527 - 13,228 |
| Type | 35 080 | 35 090 | 35 100 |
|---|---|---|---|
| Base Machine | |||
| Volume (l) | 93 | 105 | 117 |
| Width (mm) | 800 | 900 | 1,000 |
| Weight without/with Teeth (kg) | 63/68 | 68/73 | 73/78 |
| Weight of Base Machine (t) | 0.6 - 1.5 |
| Type | 35 080 | 35 090 | 35 100 |
|---|---|---|---|
| Base Machine | |||
| Volume (US gal) | 24.6 | 27.7 | 30.9 |
| Width (in) | 31.5 | 35.4 | 39.4 |
| Weight without/with Teeth (lb) | 139/150 | 150/161 | 161/172 |
| Weight of Base Machine (lb) | 1,323 - 3,307 |
