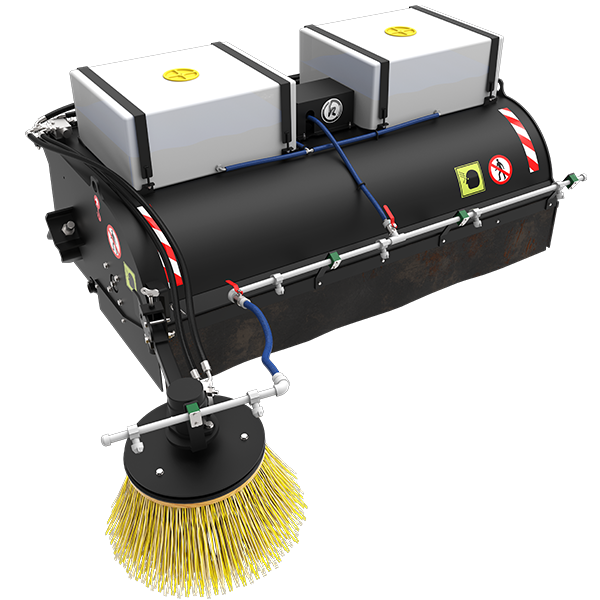

The Sweeper with a collection container is designed for sweeping roads, courtyards, parking lots and other open spaces. The container allows unloading of the collected waste onto a collection vehicle.
The Sweeper with a collection container is designed for sweeping roads, courtyards, parking lots and other open spaces. The container allows unloading of the collected waste onto a collection vehicle.
| Type | 92 140 | 92 180 | 92 215 |
|---|---|---|---|
| Base Machine | |||
| Sweeping Width (mm) | 1,400 | 1,800 | 2,150 |
| Brush Diameter (mm) | 600 | ||
| Water Volume (l) | 100 | 100/150 | 150/200 |
| Capacity of the collection container (m 3 ) | 0.28 | 0.38 | 0.45 |
| Hydraulic Opening of the Collector | available for reorder | ||
| Floating Function | no | ||
| Required Hydraulic Oil Flow (l/min) | 50 - 90 | ||
| Required Hydraulic Oil Pressure (bar) | 180 - 240 | ||
| Weight (kg) | 375 | 445 | 580 |
| Weight of Base Machine (t) | 1.6 - 4 |
| Type | 92 140 | 92 180 | 92 215 |
|---|---|---|---|
| Base Machine | |||
| Sweeping Width (in) | 55.1 | 70.9 | 84.6 |
| Brush Diameter (in) | 23.6 | ||
| Water Volume (US gal) | 26.4 | 26.4/39.6 | 39.6/52.8 |
| Capacity of the collection container (ft 3 ) | 9.89 | 13.42 | 15.89 |
| Hydraulic Opening of the Collector | available for reorder | ||
| Floating Function | no | ||
| Required Hydraulic Oil Flow (US gal/min) | 13.2 - 23.8 | ||
| Required Hydraulic Oil Pressure (psi) | 2,611 - 3,481 | ||
| Weight (lb) | 827 | 981 | 1,279 |
| Weight of Base Machine (lb) | 3,527 - 8,818 |
| Type | 65 215 | 65 240 |
|---|---|---|
| Base Machine | ||
| Sweeping Width (mm) | 2,150 | 2,400 |
| Brush Diameter (mm) | 600 | |
| Water Volume (l) | 200 | |
| Capacity of the collection container (m 3 ) | 0.45 | 0.52 |
| Method of Opening the Collection Container | hydraulic | |
| Floating Function | yes | |
| Required Hydraulic Oil Flow (l/min) | 50 - 90 | |
| Required Hydraulic Oil Pressure (bar) | 180 - 240 | |
| Weight (kg) | 850 | 950 |
| Weight of Base Machine (t) | 4 - 13 |
| Type | 65 215 | 65 240 |
|---|---|---|
| Base Machine | ||
| Sweeping Width (in) | 84.6 | 94.5 |
| Brush Diameter (in) | 23.6 | |
| Water Volume (US gal) | 52.8 | |
| Capacity of the collection container (ft 3 ) | 15.9 | 18.4 |
| Method of Opening the Collection Container | hydraulic | |
| Floating Function | yes | |
| Required Hydraulic Oil Flow (US gal/min) | 13.2 - 23.8 | |
| Required Hydraulic Oil Pressure (psi) | 2,610 - 3,481 | |
| Weight (lb) | 1,874 | 2,094 |
| Weight of Base Machine (lb) | 8,818 - 28,660 |
| Type | 21 090 | 21 100 | 21 110 |
|---|---|---|---|
| Base Machine | |||
| Sweeping Width (mm) | 900 | 1,000 | 1,100 |
| Brush Diameter (mm) | 400 | ||
| Water Volume (l) | 47 | ||
| Capacity of the collection container (l) | 65 | 72 | 79 |
| Method of Opening the Collection Container | manual | ||
| Floating Function | no | ||
| Required Hydraulic Oil Flow (l/min) | 20 - 45 | ||
| Required Hydraulic Oil Pressure (bar) | 150 - 210 | ||
| Weight (kg) | 190 | 209 | 228 |
| Weight of Base Machine (t) | 0.6 - 1.5 |
| Type | 21 090 | 21 100 | 21 110 |
|---|---|---|---|
| Base Machine | |||
| Sweeping Width (in) | 35.4 | 39.4 | 43.3 |
| Brush Diameter (mm) | 15.7 | ||
| Water Volume (US gal) | 12.4 | ||
| Capacity of the collection container (US gal) | 17.2 | 19.0 | 20.9 |
| Method of Opening the Collection Container | manual | ||
| Floating Function | no | ||
| Required Hydraulic Oil Flow (US gal/min) | 5.3 - 11.9 | ||
| Required Hydraulic Oil Pressure (psi) | 2,176 - 3,046 | ||
| Weight (lb) | 419 | 461 | 503 |
| Weight of Base Machine (lb) | 1,323 - 3,307 |
