Positioners that put the weld where you need it.

Turn and tilt weldments up to 30 tonnes into the ideal welding position — faster work, better welds, safer workplace. Every unit features stepless speed control and a START-STOP system.

6manual types
7robotic types
600 kg – 30 tbearing capacity
For manual welding

Manual positioners.

Compact and double-column units for classic welding shops — most without any anchoring requirement.

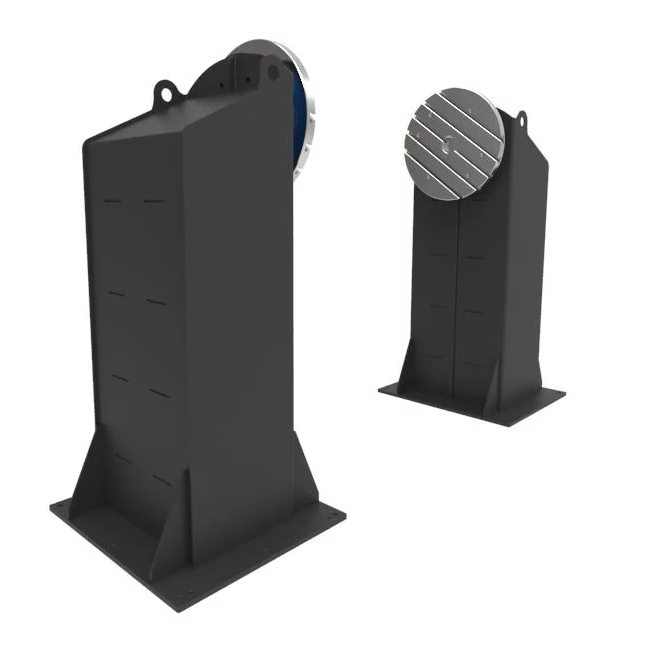

SPK-BZ-D Welding positioners type SPK-BZ-D

Welding positioners type SPK-BZ-D

Bearing capacity from 600kg to 5t

A double column single-axis positioner for long parts used in the applications not requiring a change of the w...

View product

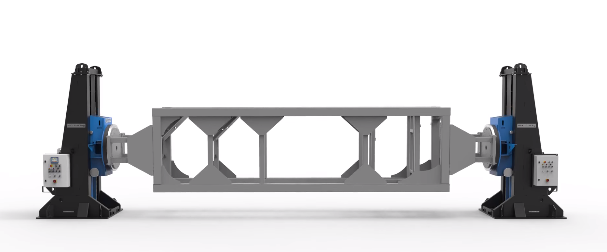

SP-DL Welding positioners type SP-DL

Welding positioners type SP-DL

Bearing capacity from 2,400kg to 20t

A double column two-axis positioner for long parts. The hydraulic lift significantly speeds up height adjustme...

View product

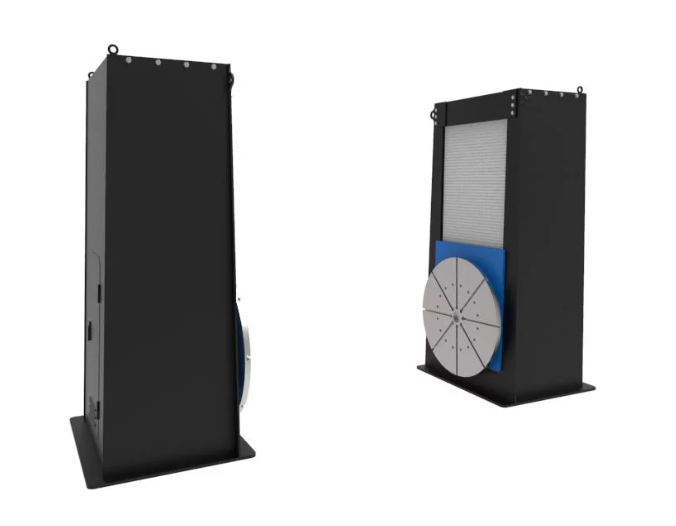

SPK-D Welding positioners type SPK-D

Welding positioners type SPK-D

Bearing capacity from 2,400kg to 30t

A fully covered double column two-axis positioner for long parts. The hydraulic lift significantly speeds up h...

View product

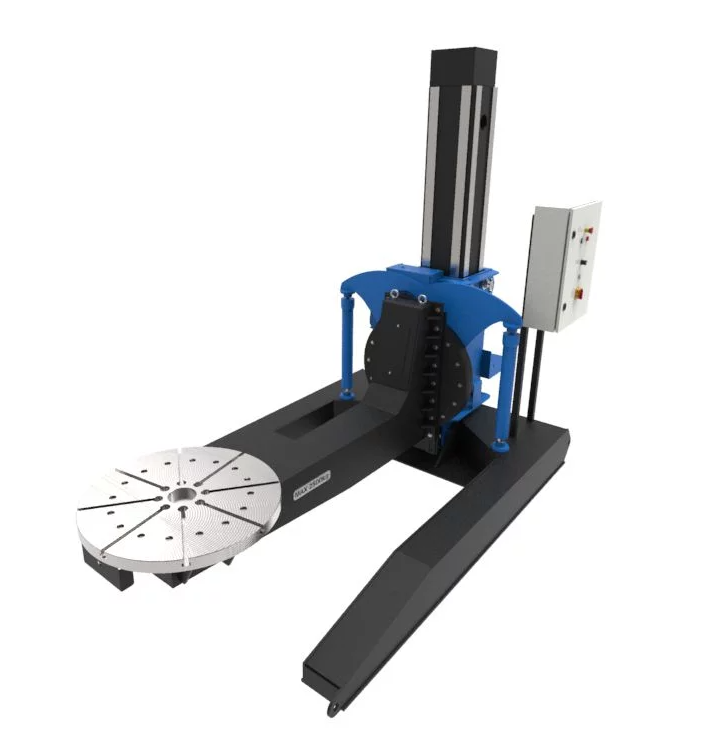

SP Welding positioners type SP

Welding positioners type SP

Bearing capacity from 600kg to 15t

A three-axis positioner without anchoring requirement allows independent position adjustments in three axes. I...

View product

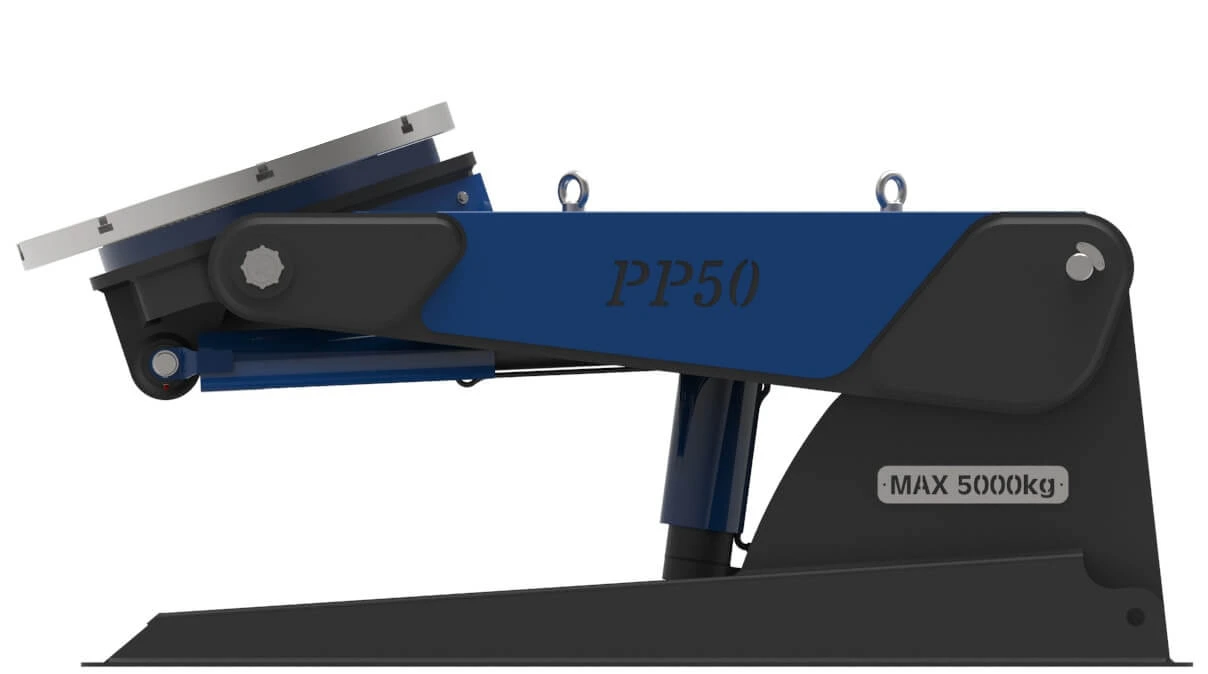

PP Welding positioners type PP

Welding positioners type PP

Bearing capacity from 800kg to 10t

A compact three-axis positioner without anchoring requirement for simpler applications. Hydraulic lift and cla...

View product

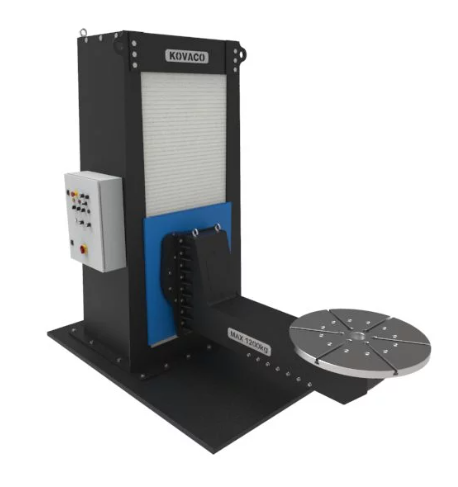

SPK Welding positioners type SPK

Welding positioners type SPK

Bearing capacity from 1,200kg to 15t

A fully covered three-axis positioner allows independent position adjustments in three axes. The hydraulic arm...

View product
For robotic welding

Robotic positioners.

Single and double-sided rotary units ready for synchronisation with robotic welding arms.

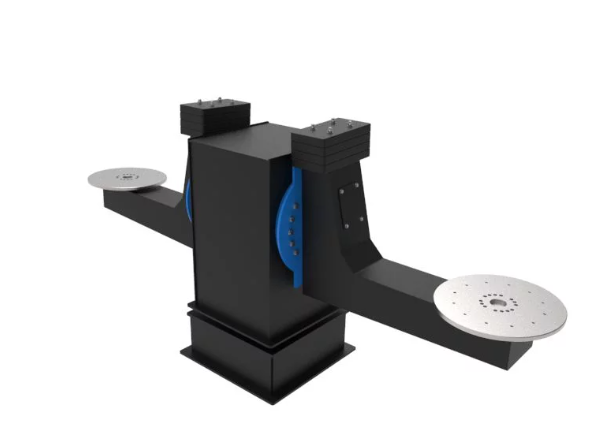

SPK-BZ-DR-HO-R Welding positioners type SPK–BZ–DR-HO–R

Welding positioners type SPK–BZ–DR-HO–R

Bearing capacity from 600kg to 5t

A rotary double sided two-axis positioner for robotic applications. The configuration of the positioner allows...

View product
SPK-BZ-D-R Welding positioners type SPK-BZ-D-R

Welding positioners type SPK-BZ-D-R

Bearing capacity from 1,200kg to 30t

A double column single-axis positioner for robotic welding of long parts. The use of precise cycloid gears to...

View product

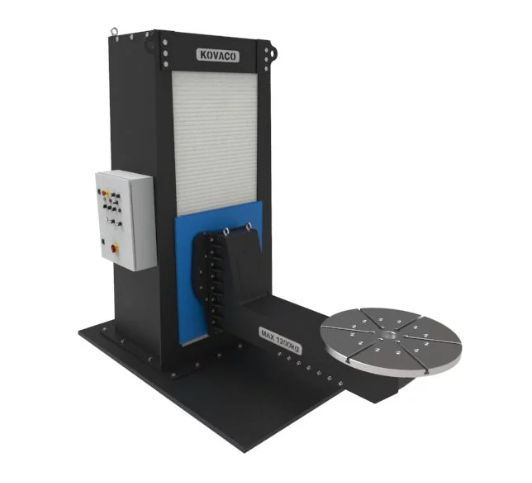

SPK-R Welding positioners type SPK–R

Welding positioners type SPK–R

Bearing capacity from 600kg to 15t

A three-axis positioner for robotic applications. The use of ball screws for lifting, and precision cycloidal...

View product

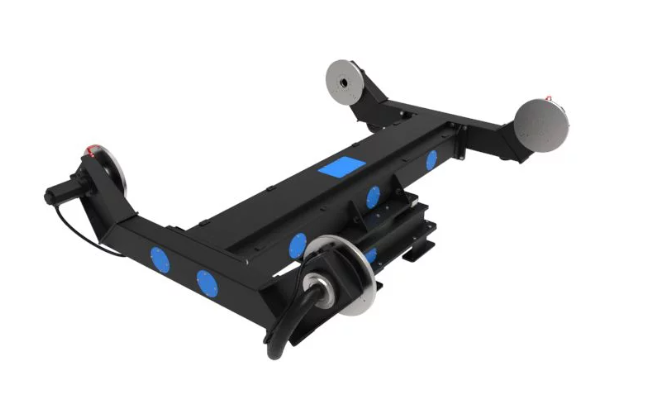

SPK-BZ-HR-HO-R Welding positioners type SPK–BZ-HR-HO–R

Welding positioners type SPK–BZ-HR-HO–R

Bearing capacity from 600kg to 5t

A rotary double sided one-axis positioner for robotic applications. Its configuration allows both welding and...

View product

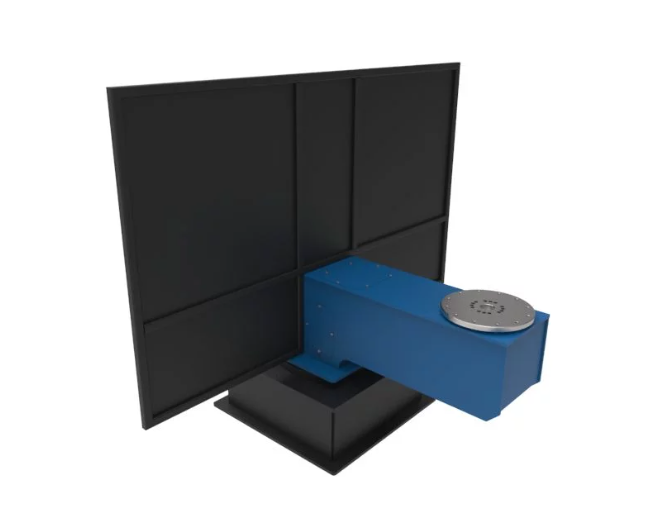

SPK-BZ-DP-HO-R Welding positioners type SPK-BZ-DP-HO–R

Welding positioners type SPK-BZ-DP-HO–R

Bearing capacity from 600kg to 5t

A rotary double sided one-axis positioner for robotic applications. Its configuration allows both welding and...

View product

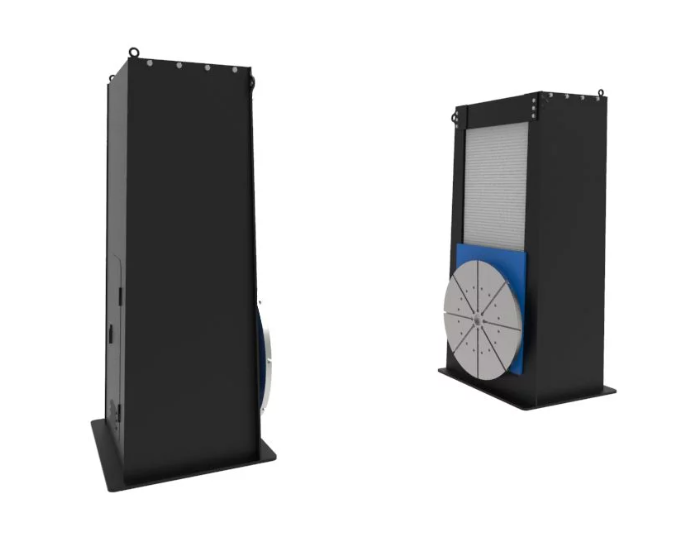

SPK-D-R Welding positioners type SPK-D–R

Welding positioners type SPK-D–R

Bearing capacity from 1,200kg to 30t

A double column two-axis positioner for robotic welding of long parts. The use of ball screws for lifting, and...

View product
SPK-HO-R Welding positioners type SPK-HO-R

Welding positioners type SPK-HO-R

Bearing capacity from 600kg to 5t

A rotary three-axis positioner for robotic applications. The configuration of the positioner, when using two o...

View product
Clamping fixtures

Turn-key: positioner + fixture.

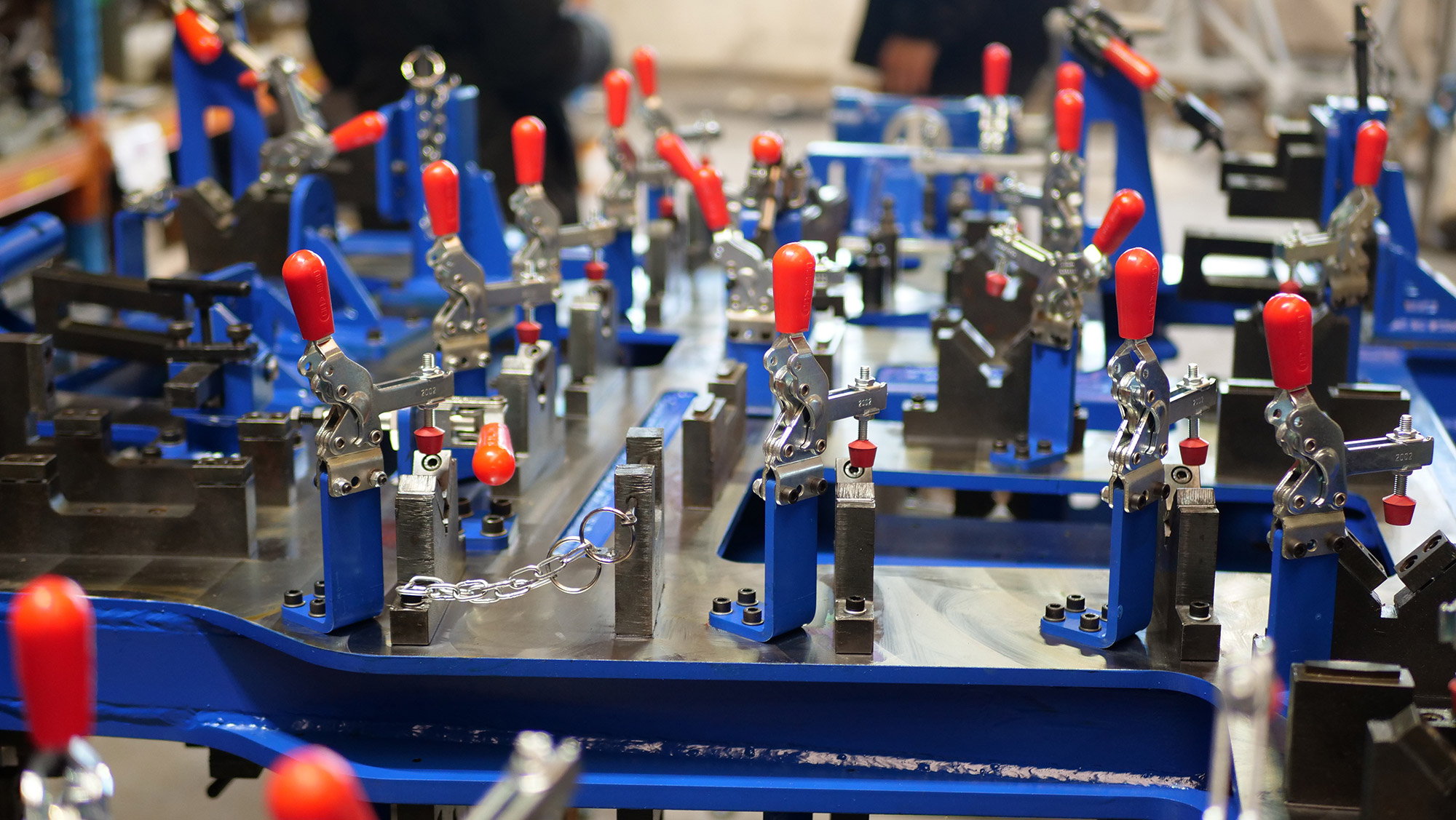

Clamping fixtures

Clamping fixtures

Clamping fixtures are designed according to customer requirements. They ensure an efficient clamping of a specific part or a group of parts to the welding positioner. Thus, the customer need not worry about choosing a clamping fixture supplier, coordinating the work or exchanging information between

View details

Not sure which positioner fits your part?

Send us your weldment drawing or just its weight and dimensions — our engineers will size the right unit and fixture for you.

Request a recommendation
